Industrial Mini Pc X86 Motherboard For Cashless Payment Systems

Brand Name : SMATiPC

Model Number : H-HSWU01

Certification : CE,FCC,ROHS

Place of Origin : China

MOQ : 1

Price : 45-80

Payment Terms : T/T,Credit Card,PayPal

Supply Ability : 10000 Pcs/month

Delivery Time : 5-7 Days For Sample

Packaging Details : Netural

PCB Size : 170mm*170mm(L*W)

Processor : I3-4200U I5-5200U I7-4500U I5-5200U I7-5500U

Storage : 1*SATA3.0, 1*mini-PCIE

Com : 6 x RS232 Com

Other ports : 1 x JPS/2, 1*JAT/ATX

Power Supply : DC 12V

Other Function : whatchdog

Contact Now

Product Description:

Smart Retail Motherboard with Enhanced Security Features


Industrial Mini Pc X86 Motherboard for cashless payment systems and AI-powered vending machines, this board integrates TPM 2.0 security chip for transaction protection. The dual 4K display capability (HDMI+EDP) enables vibrant product showcases, while dual-band WiFi 6 (via Mini PCIe) supports fast mobile payments. Unique retail-specific features include USB charging ports, barcode scanner interfaces, and anti-tamper casing. Its low-latency design ensures smooth operation for self-checkout stations and digital menu boards.


Technical Parameters:

Technical Parameter Details
Size 170 mm*170mm(L*W)
CPU Intel 4th/5th CoreTM i3/i5/i7 or Celeron Processor
GPU Intel HD Graphics
Memory 1x DDR3 memory slot, max 8 GB
Display Port
1*VGA: max resolution up to 1920*1080@60Hz
1*HDI: max resolution up to 2560X1600@60Hz
1*LVDS/eDP: LVDS,Dual Channel 24 bit, max resolution up to 1920*1200@60Hz
1*eDP, max resolution up to 1920*1200@60Hz
Lan 2 x RJ45 RTL8111H Gigabit Ethernet
Combined/I ² C/ SMBus 1x LPT
Work Temp

-20~75℃ 10%~90%
Work Humidity 0~60℃ 10%~90%

Image:

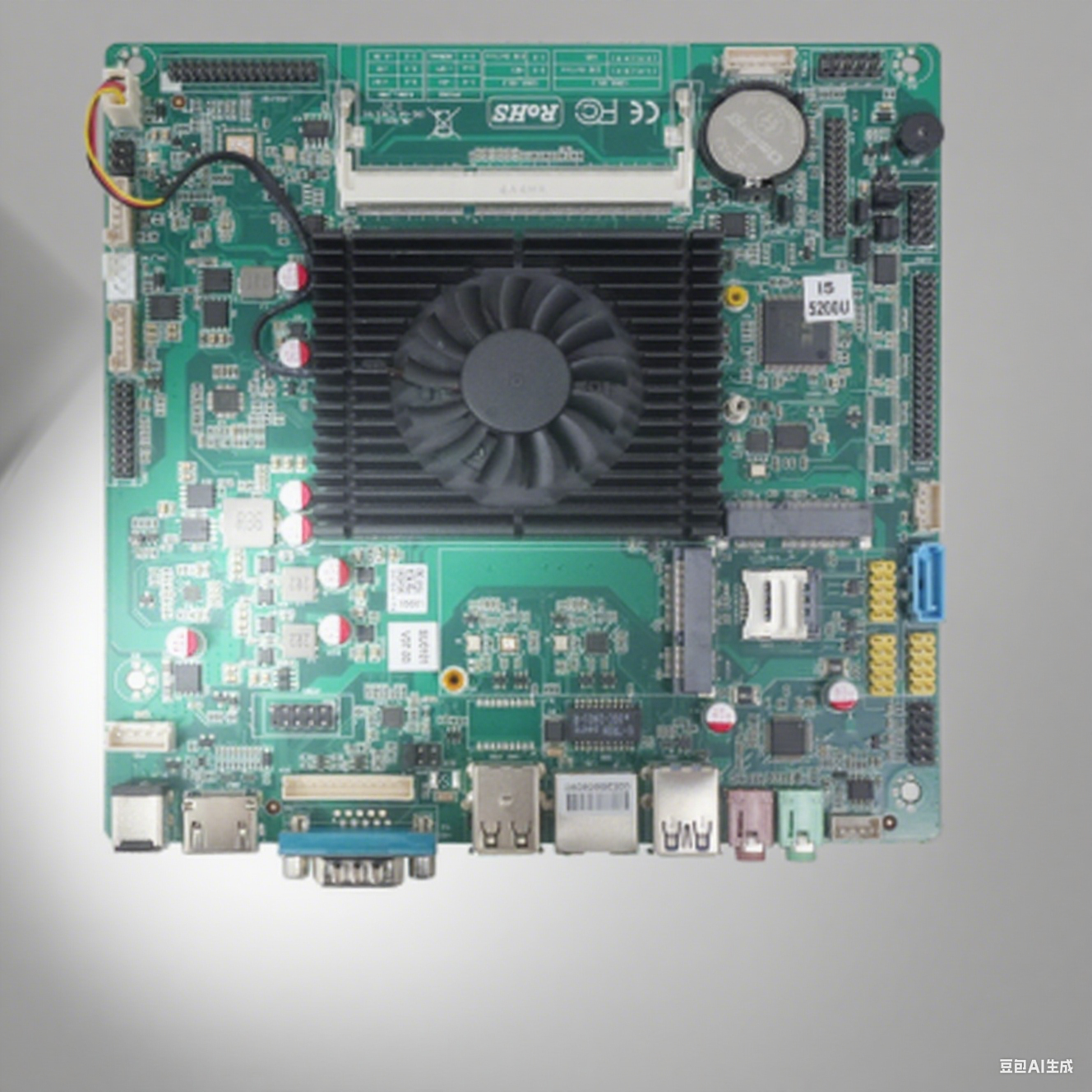

Industrial Mini Pc X86 Motherboard For Cashless Payment Systems
