PCB 100 X 100mm Mini Motherboard 4 Lan Thin Client J3160 NUC Motherboard with 2hd port

Product Categories

Shenzhen Xin Saike Technology Co.,Ltd.

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

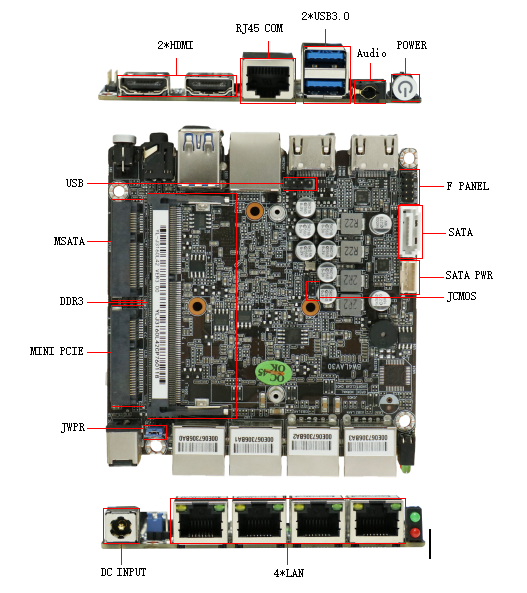

PCB 100 X 100mm Mini Motherboard 4 Lan Thin Client J3160 NUC Motherboard with 2hd port

Name: PCB 100 X 100mm Mini Motherboard 4 Lan Thin Client J3160 NUC Motherboard with 2hd port
Brand: SMATIPC
Price: 1 USD

Wholesale PCB 100 X 100mm Mini Motherboard 4 Lan Thin Client J3160 NUC Motherboard with 2hd port from china suppliers

Brand Name : SMATIPC

Model Number : J3160-L4

Certification : CE, ROHS,FCC,ISO9001

Place of Origin : China

MOQ : 1

Payment Terms : T/T,Paypal

Delivery Time : 5-8 work days

Packaging Details : Each pc for one neutral box

Size : 100mm X 100mm

Processor : Intel® Celeron® Processor J3160

Display Chip : Intel® HD Graphics

BIOS : AMI BIOS

Ram : 1 x DDR3 1600 ，Max 8 GB

Storage : 1 x MSATA , 1 x 2.5" HDD

Lan Port : 4 x Intel 1000M Lan

Power Supply : DC 12V

Contact Now

100x100mm PCB 4 LAN 1 MINI PCIE thin client J3160 NUC Motherboard

Product Description

Dimensions: 100mm x 100mm
Intel Celeron Processor J3160
1 DDR3 1600MHz SODIMM memory slot, up to 8 GB
1 MSATA slot, 1 2.5-inch hard disk slot
4 Intel i210 AT Gigabit Ethernet port
2 HD-MI high-definition display port

Specification

Parameter-J3160
Dimensions	100mm x 100mm
Processor	Intel® Celeron® Processor J3160
Chipset	Intel® HD Graphics
RAM	1 DDR3 1600 Ram, up to 8 GB
Storage	1 x MSATA, 1 x 2.5 inch HDD/SSD
I/O Port
Display Port	2 x HD-MI
Network	4 x Intel 1000M Lan Port
USB	2 x USB 3.0
COM	1 x RJ45 COM
SIM card	1 x SIM card slot
Power supply	1 x DC 12V

PCB 100 X 100mm Mini Motherboard 4 Lan Thin Client J3160 NUC Motherboard with 2hd port

Application

This motherboard supports various operating systems: Linux,pfsense and Windows , Ubuntu. You will be able to install an HDD hard disk and in 2.5-inch format. One sodimm memory channels are available in 1600 MHz, up to 8 GB.

As far as connectivity is concerned, you'll find a 4 lan gigabit lan port for ultra-fast data transfers for all your wired peripherals in addition to two USB ports
